# Approaches to Time Series Data with Weak Seasonality: Dynamic Harmonic Regression

In the previous article, we have tried to model the gold price in Turkey per gram. We will continue to do that to find the best fit for our data. When we chose the KNN and Arima model, we saw the traditional Arima model was much better than the KNN, which is a machine learning algorithm. This time we will try the regression model as a machine learning model and also try to improve our Arima model with some mathematical operations.

A regression that has Fourier terms is called dynamic harmonic regression. This harmonic structure is built of the successive Fourier terms that consist of sine and cosine terms to form a periodic function. These terms could catch seasonal patterns delicately.

$\boldsymbol{x_{1}=\sin(\frac{2\pi t} {m})}$, $\boldsymbol{x_{2}=\cos(\frac{2\pi t} {m})}$, $\boldsymbol{x_{3}=\sin(\frac{4\pi t} {m})}$,
$\boldsymbol{x_{4}=\cos(\frac{4\pi t} {m})}$, $\boldsymbol{x_{5}=\sin(\frac{6\pi t} {m})}$, $\boldsymbol{x_{6}=\cos(\frac{6\pi t} {m})}$

m is for the seasonal periods. If the number of terms increases, the period would converge to a square wave. While Fourier terms capture the seasonal pattern, the ARIMA model process the error term to determine the other dynamics like prediction intervals.

We will examine the regression models with K values from 1 to 6 and plot them down to compare corrected Akaike’s information criterion(AICc) measurement, which should be minimum. We will set the seasonal parameter to FALSE; because of that Fourier terms will catch the seasonality, we don’t want that the auto.arima function to search for seasonal patterns, and waste time. We should also talk about the transformation concept to understand the lambda parameter we are going to use in the models.

Transformation, just like differentiation, is a mathematical operation that simplifies the model and thus increases the prediction accuracy. In order to do that it stabilizes the variance so that makes the pattern more consistent.

These transformations can be automatically made by the auto.arima function based on the optimum value of the lambda parameter that belongs to the Box-Cox transformations which are shown below, if the lambda parameter set to “auto“.

$\log(y_t)$ ; if $\boldsymbol{\lambda=0}$
$y_t^{\lambda}$ ; if otherwise

#Comparing with plots
plots <- list()

for (i in seq(6)) {

fit <- train %>%
auto.arima(xreg = fourier(train, K = i), seasonal = FALSE, lambda = "auto")

plots[[i]] <- autoplot(forecast(fit, xreg=fourier(train, K=i, h=18))) +
xlab(paste("K=",i,"   AICC=",round(fit[["aicc"]],2))) +
ylab("") +
theme_light()

}

gridExtra::grid.arrange(
plots[[1]],plots[[2]],plots[[3]],
plots[[4]],plots[[5]],plots[[6]], nrow=3)



You can also see from the above plots that the more K value the more toothed point forecasting line and prediction intervals we get. It is seen that after the K=3, AICC values increase significantly. Hence, K should be equals to 2 for the minimum AICC value.

#Modeling with Fourier Regression
fit_fourier <- train %>%
auto.arima(xreg = fourier(train,K=2), seasonal = FALSE, lambda = "auto")

#Accuracy
f_fourier<- fit_fourier %>%
forecast(xreg=fourier(train,K=2,h=18)) %>%
accuracy(test)

f_fourier[,c("RMSE","MAPE")]

#                   RMSE        MAPE
#Training set   8.586783    4.045067
#Test set      74.129452   17.068118

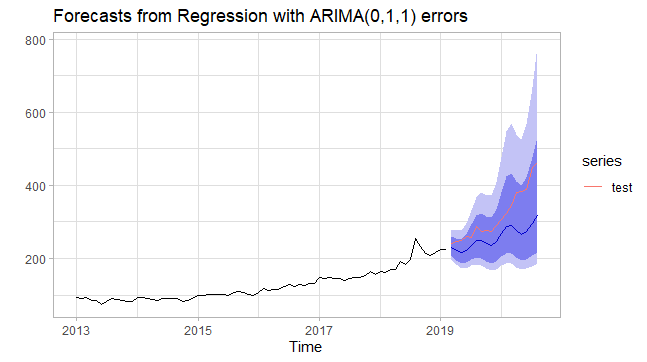

#Accuracy plot of the Fourier Regression
fit_fourier %>% forecast(xreg=fourier(train,K=2,h=18)) %>%
autoplot() +
autolayer(test) +
theme_light() +
ylab("")


In the previous article, we have calculated AICC values for non- seasonal ARIMA. The reason we choose the non-seasonal process was that our data had a very weak seasonal pattern, but the pairs of Fourier terms have caught this weak pattern very subtly. We can see from the above results that the Fourier regression is much better than the non-seasonal ARIMA for RMSE and MAPE accuracy measurements of the test set.

Since we are also taking into account the seasonal pattern even if it is weak, we should also examine the seasonal ARIMA process. This model is built by adding seasonal terms in the non-seasonal ARIMA model we mentioned before.

$\boldsymbol{ARIMA(p, d, q) (P, D, Q)_m}$

$\textbf{ (p, d, q)}$ : non-seasonal part.
$\boldsymbol{ (P, D, Q)_m}$ : seasonal part.
$\textbf{ m}$: the number of observations before the next year starts; seasonal period.

The seasonal parts have term non-seasonal components with backshifts of the seasonal period. For instance, we take $\boldsymbol{ARIMA(1, 1, 1) (1, 1, 1)_{12}}$ model for monthly data, m=12. This process can be written as:

$\boldsymbol{(1 - \phi_1 B) (1 - \Phi_1 B^{12}) (1 - B) (1 - B^{12})y_t = (1 + \theta_1 B) (1 + \Theta_1 B^{12})}$

$(1 - \phi_1 B)$ for p = 1,
$(1 - \Phi_1 B^{12})$ for P=1,
$(1 - B)$ for first difference(d=lag1),
$(1 - B^{12})$ for seasonal difference(D=lag12),
$(1 + \theta_1 B)$ for q=1,
$(1 + \Theta_1 B^{12})$ for Q=1.

#Modeling the Arima model with transformed data
fit_arima<- train %>%
auto.arima(stepwise = FALSE, approximation = FALSE, lambda = "auto")

#Series: .
#ARIMA(3,1,2) with drift
#Box Cox transformation: lambda= -0.7378559

#Coefficients:
#         ar1      ar2      ar3      ma1     ma2  drift
#      0.8884  -0.8467  -0.1060  -1.1495  0.9597  3e-04
#s.e.  0.2463   0.1557   0.1885   0.2685  0.2330  2e-04

#sigma^2 estimated as 2.57e-06:  log likelihood=368.02
#AIC=-722.04   AICc=-720.32   BIC=-706.01


Despite the seasonal parameter set to TRUE as default, the auto.arima function couldn’t find a model with seasonality because the time series data has a very weak seasonal strength level as we mentioned before. Unlike the Arima model that we did in the previous article, we set to lambda parameter to “auto“. It makes the data transformed with $\boldsymbol\lambda$=-0.7378559.

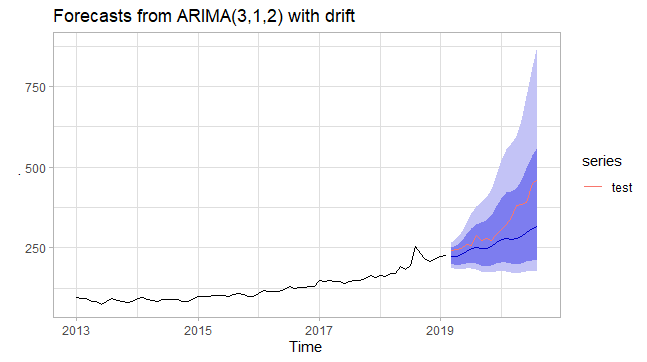

#Accuracy of the Arima model with transformed data
fit_arima %>% forecast(h=18) %>%
autoplot() +
autolayer(test) +
theme_light()

f_arima<- fit_arima %>% forecast(h =18) %>%
accuracy(test)

f_arima[,c("RMSE","MAPE")]

#                  RMSE     MAPE
#Training set  9.045056  3.81892
#Test set     67.794358 14.87034


As we will be remembered, the RMSE and MAPE values of the Arima model without transformation were 94.788638 and 20.878096 respectively. We can easily confirm from the above results that the transformation improves the accuracy if the time series have an unstabilized variance.

Conclusion

The time-series data with weak seasonality like our data has been modeled with dynamic harmonic regression, but the accuracy results were worst than Arima models without seasonality.

In addition to that, the transformed data has been modeled with the Arima model more accurately than the one not transformed; because our data has the variance that has changed with the level of time series. Another important thing is that when we take a look at the accuracy plots of both the Arima model and Fourier regression, we can clearly see that as the forecast horizon increased, the prediction error increased with it.
